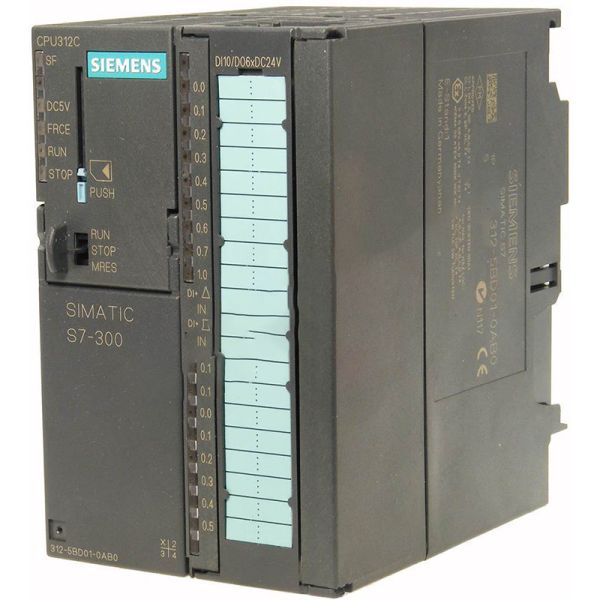

SIEMENS 6ES7312-5BD01-0AB0 SIMATIC S7-300 CPU312C COMPACT CPU WITH MPI 10 DI/6 DO, 2 FAST COUNTERS (10 KHZ
The SIEMENS 6ES7312-5BD01-0AB0 is a CPU module from the SIEMENS SIMATIC S7-300 series. Here are the details about the SIEMENS 6ES7312-5BD01-0AB0:
1. Model: The 6ES7312-5BD01-0AB0 is a specific model of the CPU module used in the SIMATIC S7-300 PLC system.
2. Function: The CPU module serves as the central processing unit for the PLC system. It performs control and processing tasks, executes the user program, communicates with other modules and devices, and manages the overall operation of the system.
3. CPU312C: The "C" in the model name indicates that this is a CPU312C module. The CPU312C typically offers integrated digital I/O capabilities, allowing for direct connection and control of digital devices.
4. Digital Inputs/Outputs: The CPU312C module usually includes 10 digital inputs (DI) and 6 digital outputs (DO). These inputs and outputs enable the connection and control of digital devices such as sensors, switches, and actuators.
5. Memory: The CPU312C module has a memory capacity of 16KB. This includes program memory for storing the user program, data memory for storing variables and data, and system memory for system-related information and operation.
The SIEMENS 6ES7312-5BD01-0AB0 CPU module with the CPU312C configuration is suitable for applications that require control processing with integrated digital I/O capabilities. It provides a compact solution for controlling and monitoring digital devices within the automation system.
For detailed information about the SIEMENS 6ES7312-5BD01-0AB0 CPU module, including its specifications, programming capabilities, communication options, and application-specific details, it is recommended to refer to the official documentation provided by SIEMENS or contact their technical support. They can provide you with accurate and up-to-date information based on your specific requirements and the latest product information available.
| Product |
| Article Number (Market Facing Number) | 6ES7312-5BD01-0AB0 |
| Product Description | SIMATIC S7-300, CPU 312C COMPACT CPU WITH MPI, 10 DI/6 DO, 2 FAST COUNTERS (10 KHZ), INTEGRATED 24V DC POWER SUPPLY, 16 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 X 40PIN) AND MICRO MEMORY CARD REQUIRED |
| Product family | Not available |
| Product Lifecycle (PLM) | PM500:Discontinued Product or end of PLM & Support |
| PLM Effective Date | End of product lifecycle since: 01.10.2013 |
| Notes | |
| Successor information |
| Successor | 6ES7312-5BF04-0AB0 |
| Successor Description | SIMATIC S7-300, CPU 312C Compact CPU with MPI, 10 DI/6 DQ, 2 high-speed counters (10 kHz) Integr. power supply 24 V DC, work memory 64 KB, Front connector (1x 40-pole) and Micro Memory Card required |
| Price data |
| Region Specific PriceGroup / Headquarter Price Group | 2AP / 2AP |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information |
| Export Control Regulations | ECCN : N / AL : N |
| Estimated dispatch time (Working Days) | 1 Day/Days |
| Net Weight (kg) | 0,468 Kg |
| Packaging Dimension | 13,10 x 15,40 x 8,80 |
| Package size unit of measure | CM |
| Quantity Unit | 0 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515069645 |
| UPC | Not available |
| Commodity Code | 85389091 |
| LKZ_FDB/ CatalogID | ST9-E5 |
| Product Group | 4302 |
| Group Code | R111 |
| Country of origin | Germany |
|
|
